Technical Specifications
Product Code: SY-DIVER-VISION-3DR

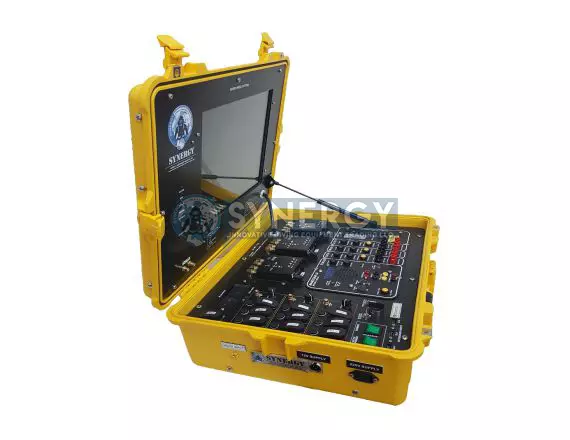

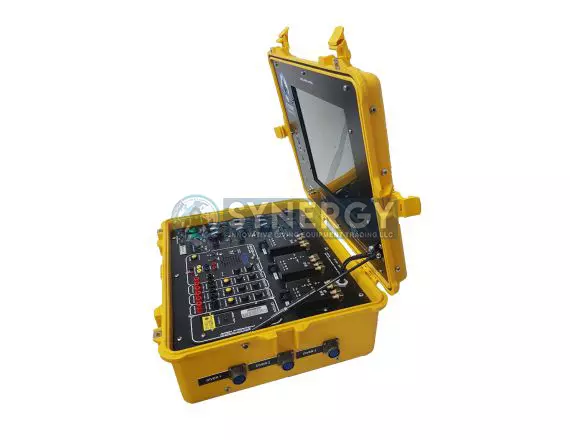

• Built in Pelican Case - The 1600 case has the following certificates: IP67 (Ingress Protection) = 1-meter submersion for 30 minutes, MIL C-4150J (Military Standard), Defense Standard 81-41/STANAG4280 and ATA 300 specifications for transit cases. Unbreakable, watertight, airtight, chemical-resistant, corrosion, and dustproof case
Dimensions
• Interior – 21.4 x 16.5 x 7.9" / 54.4 x 41.9 x 20.1 cm
• Exterior - 24.3 x 19.4 x 8.7" / 61.7 x 49.3 x 22.1 cm
• Colors – Orange, Yellow, Grey, Black
• Monitor - 15.5” TFT with remote built into lid of panel with 4 screen splitter
• Primary recording for each diver - Mini Dvr with 32gb sd card (can be upgraded to 128gb)
• Secondary recording (for all divers) - 1TB backup hard drive records all diver video files
• Surface Control Unit - Patented synergy / outland with video /light controls, usb interface for keyboard / video titler inbuilt
Connections
• Ac - 220 V adapter to 12v provided
• Dc - Battery terminals with leads (for standard car battery 12v,75 amps to be connected)
• Power meter - Digital power meter to show remaining battery life
• Keyboard - Flexible waterproof with usb connection
• Mouse - Wireless mouse
• Protection - Monitor plexiglass cover (to protect monitor damage)
• USB out - For easy copying of files to usb drives/ laptop etc
• HDMI out - For mirror images to be displayed in client room/bridge etc
• On/Off - Main on /off switch
• Communication - Three diver amron radio # 2830A-11
• Maximum Weight - 34 kgs
• Warranty - One year international manufacturer warranty
• Certifications - Provided with each system
• International - Imca D023 & D018 Compliant Certification Package
• Manufacturer - Synergy Certificates
• Electrical - Continuity/Function test
