Technical Specifications
Product Code: SY-MC-CUSTOM-6
Machinery Control Container Model 6:
• Option 1 : DNV Offshore container
• Option 2 : ISO Container with modified DNV pad eyes
• Imca Do23 & Do18 Compliant Certification Package
• Fmea For Complete System
• Bureau Veritas Class Witness Testing Certification For Entire System
• Divided into three compartments
Primary compartment:
• Non insulated, installed with below

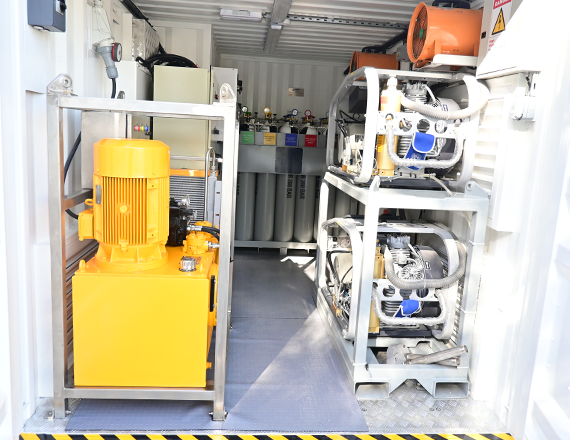

• 2 X MARINER 320E Bauer Electric High pressure compressor, 380V.50HZ
• Hydraulic power pack, powerful offshore unit, capable of running two tools simultaneously

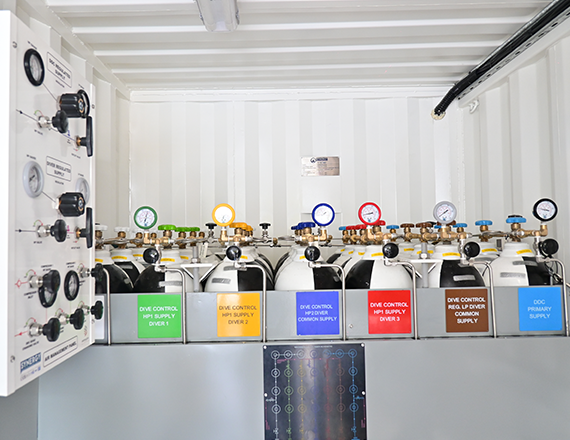

• 28 x 50 ltr x 200 bar cylinder breathing air rack for three diver panel
• 12 x 50 ltr x 200 bar cylinder breathing air rack for diving chamber
• Slotted louvre for high pressure compressor air flow
• Forced air blowers for air flow

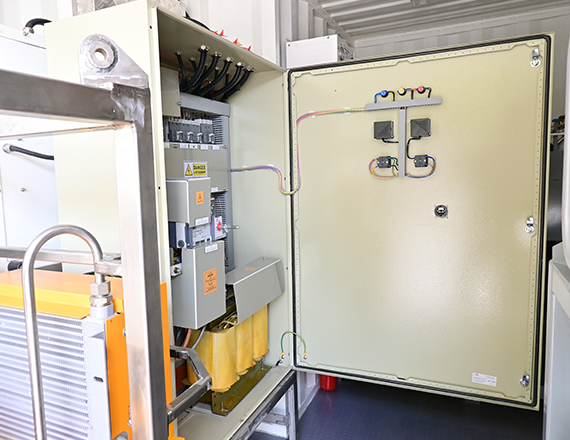

• Transformer (380v to 220v) step down for lights
• Penetration plate with all cylinders plumbed for air panel and ddc supply 250 Amp Change Over Switch to power Internal Units, Lars & DDC Container
• Penetration plate for hydraulic power pack with quick disconnect fittings
Secondary compartment:
• Non insulated, installed with below

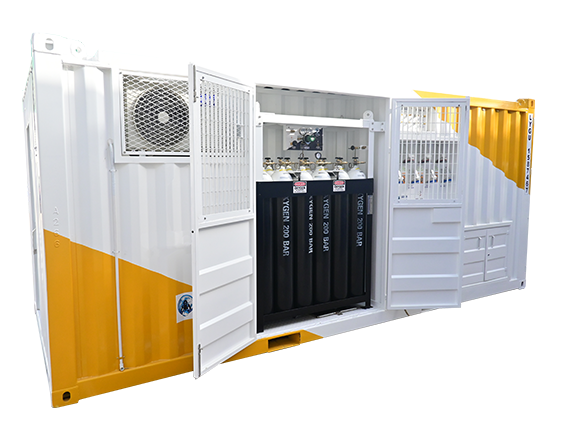

• 12 cyl Medical Oxygen Rack with Hp regulator recessed externally in to the container

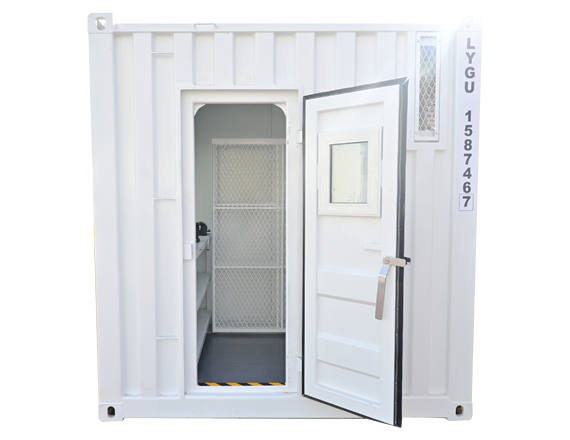

Third compartment:
• Insulated with air conditioner, installed with below
• Storage cupboard, work bench with vice, shelves
