Technical Specifications
Product Code: SY-UWS-3410
• Complete portable video system
• Light weight
• Led light
• 500gb hdd dvr
Standard system includes:

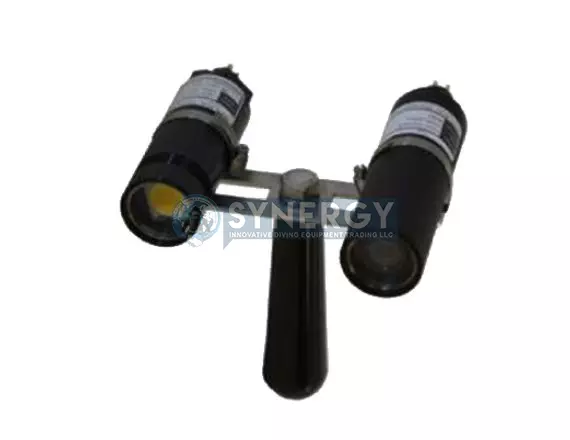

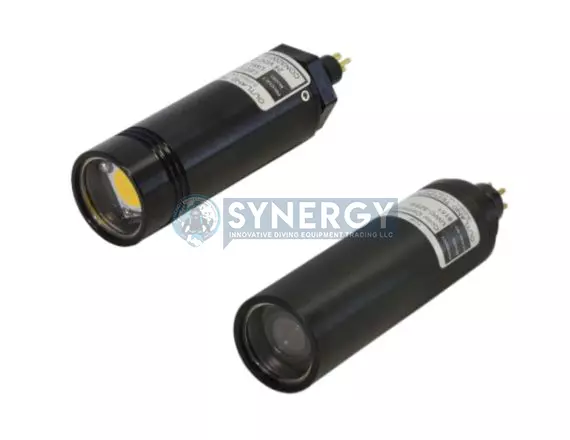

• UWC-325/p: Fixed focus, color camera
• UWL-401: Led light
• DHM-60: Bracket

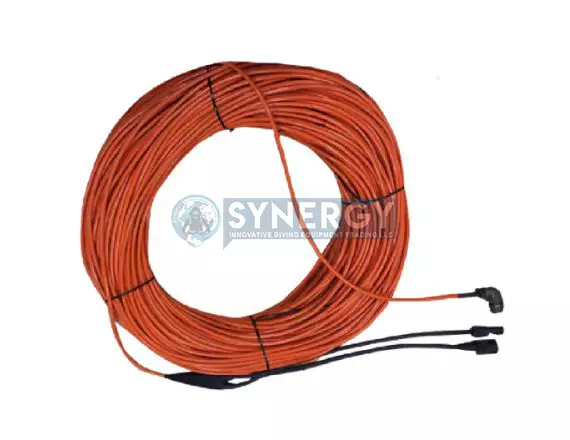

• C-2303: 500 ft. cable
• CON-3400: 15” Lcd monitor, Hdd recorder, power supply With variable light control.
• All mounted in a weather Resistant shipping case.
Mechanical
• Conductors - 16ea #22 awg 1 RG-59 Coax
• Length (mtrs) - 100/150/200 as per requirement
• Diameter - 8.5mm (0.35”)
• Materials - Orange Polyurethane jacket
• Breaking Strength - 1200 lbs
End fittings
• Diver End - Moulded Y connection
• Camera - Rmk-5-fs with locking sleeve
• Light - Rmg-3-fs with locking sleeve
• Surface end - Soldered connection
• Cable - 8 pin amphenol connector
