Technical Specifications
Product Code: SY-2DAP-D040-R-2DV-SF or BF
• High pressure - Two independent HP inlet per diver
• Low Pressure : One independent LP inlet per diver
• Amron 2820A-11 Two diver radio with ac/dc power supply
• 1 x per diver, suitable for breathing air, Inlet : 6000 psi, outlet : 400 psi
• 0-250 psi on regulated diver supply line, 100 psi on pneumo gauges

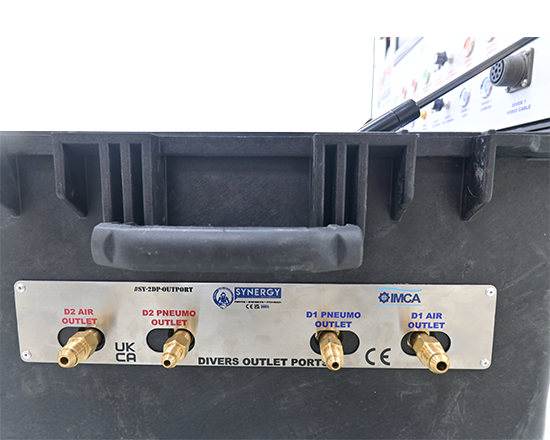

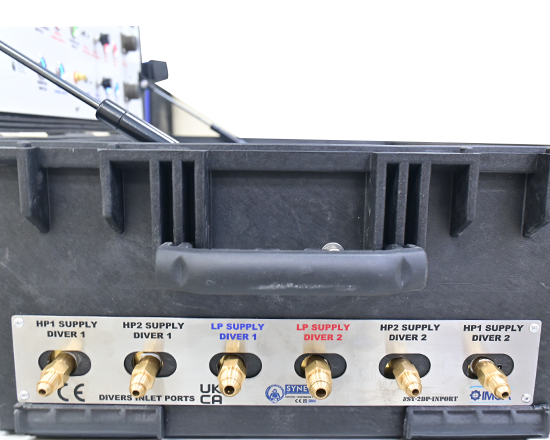

• All fittings provided on both sides of case – Left side all inlet fittings for hp air, lp air, right side divers air supply and pneumo fittings
• All fittings provided from behind the panel for inlets and outlets
• Inbuilt calibration points for pneumo gauges

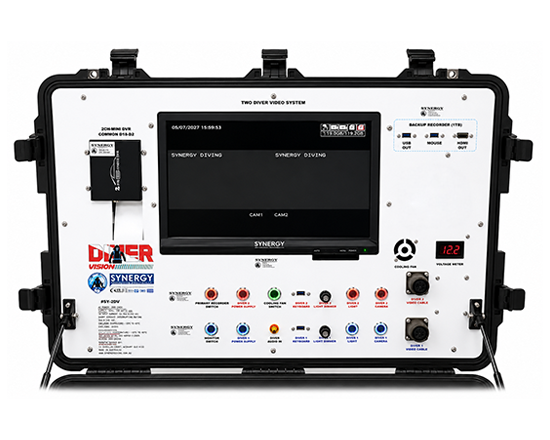

• CCTV For both diver 1 and diver 2
• TFT 15.5” (split CCTV image for diver 1 / diver 2)
• All touch button controls with backlight for low visibility operations, video and light control
• 1 TB hard drive to record all diver video simultaneously
• 1 TB backup hard drive to record all diver video simultaneously
• Imca D040 & D018 Compliant Certification Package
• Fmea For Complete System(optional)
• Bureau Veritas Class Witness Testing Certification
