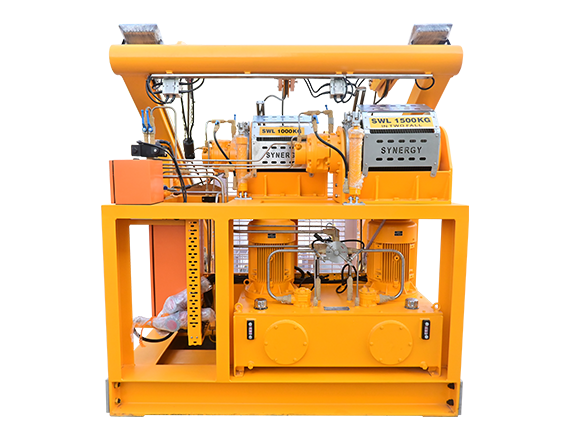

The design parameters of the Synergy launch & recovery system enable the fabrication and installation of extremely portable compact Lars systems. This enables minimum utilization of space on board diving vessels and barges, as space is a premium on all vessels. The foot print of the lars system is designed in such a way that a complete unit would easily fit into a 20ft Standard container, thus reducing shipping costs and providing ease of transportation. A Lars system typically consists of a A frame complete with base, 2 x hydraulic winches (main and guide Winch), two independent hydraulic power packs (one for each winch), thus ensuring full redundancy Option (in case of the failure of one winch, then the other winch will provide the necessary backup), and a Diving basket complete with 1 x 50 ltr cylinders (one for each diver) for emergency bailout supply with First stage and second stage regulators for diver to breathe in case of loss of surface supply
Technical Specifications
Product Code: SY-ATLAS-2D-D023-LARS
• Base skid with galvanized steel grated flooring for water drainage
• A frame , launched and recovered via two hydraulic rams
• Dive basket – 2 diver – stainless steel 316
• Breathing air cylinders (50 ltr, 200 bar) with 1st stage regulator and whip (one for each diver)
• Electric hydraulic power-pack with twin motors and pumps
• Oil reservoir (200 ltr capacity) (Single tank split 100 ltrs per pump via a partition)
• Clump weight, 300 kg
• Winches for man riding certified by manufacturer and test witnessed by
• DNV GL Certified wire ropes for winches
• IMCA D023 & D018 compliant certification
• FMEA for Lars
• Bureau Veritas Class testing witness certification for Lars
